STR-X6759F Power IC for Quasi-Resonant Type Switching Power Supply

STR-X6759F Description

Power IC for Quasi-Resonant Type Switching Power Supply with High Efficiency and Low Noise in Full Load Range STR-X6759F Sep.2013 *General desc.
The STR- X6759F is power IC for quasi-resonant type switching power supply, incorporating a power MOSFET and a controller IC.

STR-X6759F Features

* Quasi-resonant operation mode Achieves the optimal high efficiency and low noise power supply systems.
* Current mode control
* Built-in PWM oscillator The PWM operates with the minimum frequency of around 22kHz, until the quasi-resonant signal becomes valid, reduces the stress on comp

📥 Download Datasheet

Preview of STR-X6759F PDF

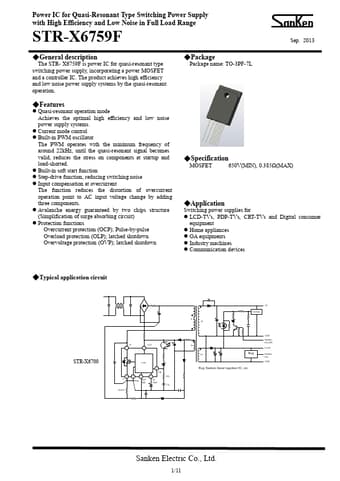

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STR-X6759F
Manufacturer
Sanken ↗
File Size
1.19 MB
Datasheet
STR-X6759F-Sanken.pdf
Description
Power IC for Quasi-Resonant Type Switching Power Supply
