STR-Y6754, STR-Y6700 Datasheet - Sanken

STR-Y6754, STR-Y6700, Quasi-Resonant Controllers

Quasi-Resonant Controllers with Integrated Power MOSFET STR-Y6700 Series General .
Package The STR-Y6700 series are power ICs for switching TO220F-7L power supplies, incorporating a MOSFET and a quasi-resonant controller IC.

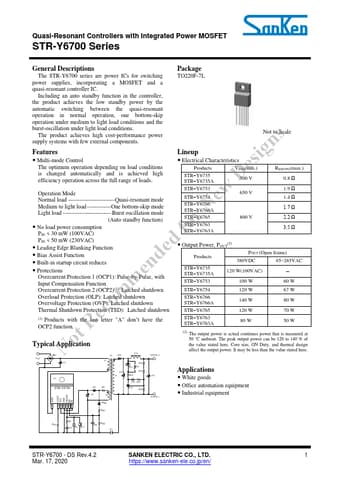

datasheet Preview Page 1 from Datasheet4u.com

STR-Y6700_Sanken.pdf

STR-Y6754 Datasheet Preview — This datasheet PDF includes multiple part numbers: STR-Y6754, STR-Y6700. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STR-Y6754, STR-Y6700

Manufacturer:

Sanken ↗

File Size:

1.76 MB

Description:

Quasi-Resonant Controllers

Note:

This datasheet PDF includes multiple part numbers: STR-Y6754, STR-Y6700.
Please refer to the document for exact specifications by model.

Features

* Multi-mode Control s The optimum operation depending on load conditions e is changed automatically and is achieved high D efficiency operation across the full range of loads. w Operation Mode e Normal load

Applications

* U1 S R52 C53
* White goods STR-Y6700 D2 R2 C3 D C52 R53 U51 R56 VOUT(-)
* Office automation equipment
* Industrial equipment D/ST 2 S/OCP VCC GND FB/OLP BD NF 1 2 3 4 5 67 DZBD RBD1 ROCP R3 C4 C5 PC1 CBD RBD2 CY STR-Y6700 - DS Rev.4.2 SANKEN ELECTRIC CO
