STR3A475HDL - Off-line PWM Controllers

Sanken

📥 Download Datasheet

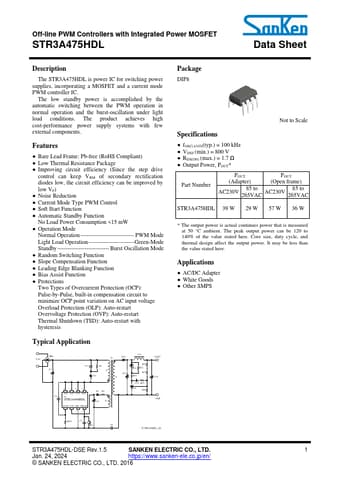

STR3A475HDL Datasheet Preview — Preview of STR3A475HDL PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STR3A475HDL
Manufacturer	Sanken ↗
File Size	724.60 KB
Description	Off-line PWM Controllers
Datasheet	STR3A475HDL-Sanken.pdf

STR3A475HDL Product details

Description

The STR3A475HDL is power IC for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

Features

Bare Lead Frame: Pb-free (RoHS Compliant).
Low Thermal Resistance Package.
Improving circuit efficiency (Since the step drive control can keep VRM of secondary rectification diodes low, the circuit efficiency can be improved by low VF).
Noise Reduction.
Current Mode Type PWM Control.
Soft Start Function.
Automatic Standby Function No Load Power Consumption.
