STRS6513 Datasheet - Sanken

STRS6513 - OFF-LINE SWITCHING REGULATOR WITH POWER MOSFET OUTPUT

STR-S6513 OFF-LINE SWITCHING REGULATOR WITH POWER MOSFET OUTPUT DRAIN 1 OSC.

FAULT LATCH Data Sheet 28102.10 SOURCE 2 R COMMON OVER-CURRENT PROTECTION V IN S The STR-S6513 is specifically designed to meet the requirement for increased integration and reliability in off-line flyback converters operating in the quasi-resonant ringing choke mode.

The device incorporates the primary control and drive circuit with a discrete avalanche-rated power MOSFET.

Crucial system parameters such

STRS6513 Features

* s Quasi-Resonant Ringing Choke Converter s Avalanche-Rated Power MOSFET Switch s Pulse-by-Pulse Current Limiting s Latched Over-Voltage and Thermal Protection s Maximum ON Time and OFF Time Set During Manufacture s Internal Under-Voltage Lockout with Hysteresis s Over-Molded SIP with Integral Isola

STRS6513_Sanken.pdf

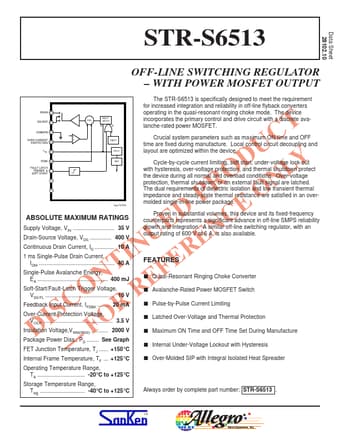

Preview of STRS6513 PDF
