STRS6704, STRS6703 Datasheet - Allegro MicroSystems

STRS6704 (STRS6703 / STRS6704) OFF-LINE SWITCHING REGULATORS WITH BIPOLAR SWITCHING TRANSISTOR

STR-S6703 AND STR-S6704 OFF-LINE SWITCHING REGULATORS WITH BIPOLAR SWITCHING TRANSISTOR COLLECTOR 1 COMMON 2 FAULT The STR-S6703 and STR-S6704 are specifically designed to meet the requirement for increased integration and reliability in off-line quasiresonant flyback converters. These devices incorporate the primary control and proportional drive circuit with a third-generation high-voltage bipolar switching transistor. Crucial system parameters such as maximum ON time and OFF tim.

STRS6704 Features

* I I I I I I I I Quasi-Resonant Operation for Low EMI and High Efficiency Output Power to 140 W Low-Power Output Standby Mode Pulse-by-Pulse Over-Current Protection Latched Over-Voltage and Thermal Protection Third-Generation Switching Transistor with Proportional Drive Maximum ON Time and OFF Time S

STRS6703_AllegroMicroSystems.pdf

This datasheet PDF includes multiple part numbers: STRS6704, STRS6703. Please refer to the document for exact specifications by model.

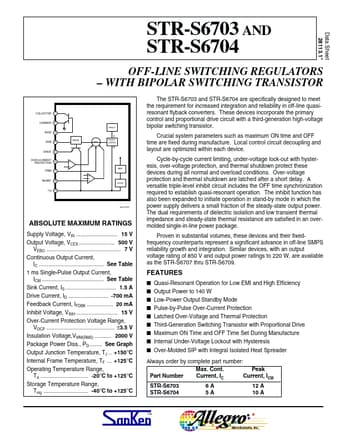

STRS6704 Datasheet Preview Page 2 STRS6704 Datasheet Preview Page 3

Datasheet Details

Part number:

STRS6704, STRS6703

Manufacturer:

Allegro MicroSystems

File Size:

158.90 KB

Description:

(strs6703 / strs6704) off-line switching regulators with bipolar switching transistor.

Note:

This datasheet PDF includes multiple part numbers: STRS6704, STRS6703.
Please refer to the document for exact specifications by model.
