STRW6553A Switching Regulator

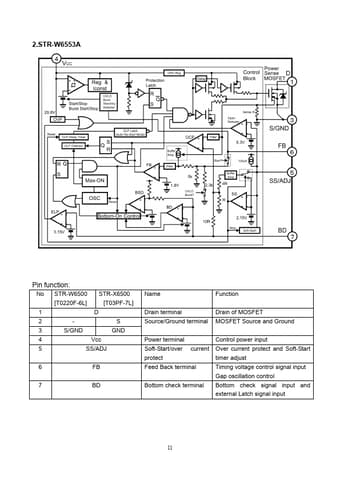

2.STR-W6553A Pin function: No STR-W6500 STR-X6500 [T0220F-6L] [T03PF-7L] 1 D 2 - S 3 S/GND GND 4 Vcc 5 SS/ADJ 6 FB 7 BD Name Function Drain terminal Drain of MOSFET Source/Ground terminal MOSFET Source and Ground Power terminal Soft-Start/over current protect Feed Back terminal Bottom check terminal Control power input Over current protect and Soft-Start timer adjust Timing voltage control signal input Gap oscillation control Bottom check signal input and external Latc.
