STRX6756 - Power IC for Quasi-Resonant Type Switching Power Supply

Product Overview

Sanken

Part number	STRX6756
Manufacturer	Sanken
File Size	1.01 MB
Description	Power IC for Quasi-Resonant Type Switching Power Supply
Datasheet	STRX6756 Datasheet
Note	This datasheet PDF includes multiple part numbers: STRX6756, STR-X6756. Please refer to the document for exact specifications by model.

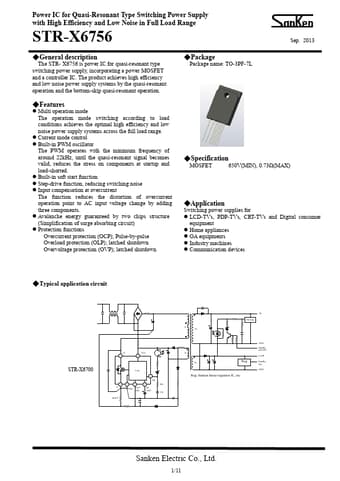

Additional preview pages of the STRX6756 datasheet.

The STR- X6756 is power IC for quasi-resonant type switching power supply, incorporating a power MOSFET and a controller IC.

Multi operation mode The operation mode switching according to load conditions achieves the optimal high efficiency and low noise power supply systems across the full load range.
Current mode control.
Built-in PWM oscillator The PWM operates with the minimum frequency of around 22kHz, until the quasi-resonant signal becomes valid, reduces the stress on components at startup and load-shorted.
Built-in soft start function.
Step-drive function, reducing switching noise.
