STRX6700 - Power-IC

Product Overview

Sanken

Datasheet Details

Part number	STRX6700
Manufacturer	Sanken
File Size	561.72 KB
Description	Power-IC
Datasheet	STRX6700 Datasheet
Note	This datasheet PDF includes multiple part numbers: STRX6700, STR-X6700. Please refer to the document for exact specifications by model.

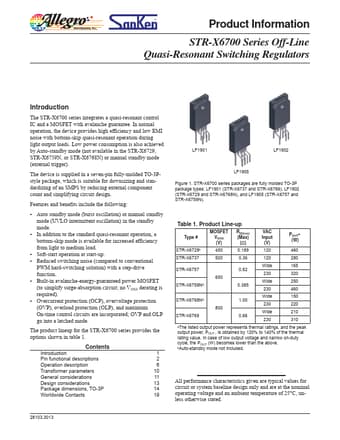

Additional preview pages of the STRX6700 datasheet.

Product details

Description

Series Power IC for Quasi-Resonant Type Switching Power Supply with High Efficiency and Low Noise in Full Load Range The STR-X6700 series products are power ICs for quasi-resonant type switching power supplies, incorporating a power MOSFET and a controller IC, The product achieves high efficiency and low noise power supply systems by the quasi-resonant operation and the bottom-skip quasi-resonant operation.The STR-W6700 series products are the different package (TO-220F) versions. Fea

Features

s Multi-Mode Control TO-3PF-7 The operation mode switching with three steps according to load conditions achieves the optimal high efficiency and low noise power supply systems across the full load range. (The confirmation of product number is necessary because some functions are different in each product. ) In Standby (Under Standby Load Conditions): －UVLO Intermittent Oscillation by low output voltage --- Switched by Standby Signal, or －Auto Burst-Oscillation --- Switched Automatically Under Lo.
