STRX6729

Off-Line Quasi-Resonant Switching Regulators

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Sanken Electric Co Ltd STR-X6729 IC OFFLINE SWITCH FLYBACK TO3P DigiKey 0 0
$0

STRX6729 Datasheet (839.55 KB)

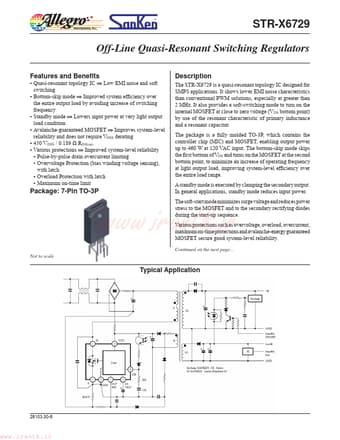

Preview of STRX6729 PDF

Datasheet Details

Part number:

STRX6729

Manufacturer:

Sanken ↗

File Size:

839.55 KB

Description:

Off-line quasi-resonant switching regulators.

STRX6729 Features

* ▪ Quasi-resonant topology IC  Low EMI noise and soft switching ▪ Bottom-skip mode  Improved system efficiency over the entire output load by avoiding increase of switching frequency ▪ Standby mode  Lowers input power at very light output load condition ▪ Avalanche-guaranteed MOSFET  Improves sys

STRX6729 General Description

The STR-X6729 is a quasi-resonant topology IC designed for SMPS applications. It shows lower EMI noise characteristics than conventional PWM solutions, especially at greater than 2 MHz. It also provides a soft-switching mode to turn on the internal MOSFET at close to zero voltage (VDS bottom point) .
