STRX6737

Off-Line Quasi-Resonant Switching Regulators

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Sanken Electric Co Ltd STR-X6737 IC OFFLINE SWITCH FLYBACK TO3P DigiKey 0 0
$0

STRX6737 Datasheet (0.99 MB)

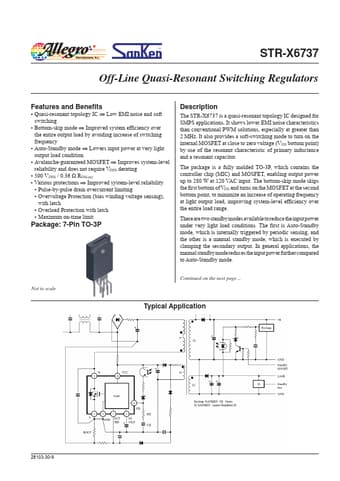

Preview of STRX6737 PDF

Datasheet Details

Part number:

STRX6737

Manufacturer:

Sanken ↗

File Size:

0.99 MB

Description:

Off-line quasi-resonant switching regulators.

STRX6737 Features

* ▪ Quasi-resonant topology IC  Low EMI noise and soft switching ▪ Bottom-skip mode  Improved system efficiency over the entire output load by avoiding increase of switching frequency ▪ Auto-Standby mode  Lowers input power at very light output load condition ▪ Avalanche-guaranteed MOSFET  Improve

STRX6737 General Description

The STR-X6737 is a quasi-resonant topology IC designed for SMPS applications. It shows lower EMI noise characteristics than conventional PWM solutions, especially at greater than 2 MHz. It also provides a soft-switching mode to turn on the internal MOSFET at close to zero voltage (VDS bottom point) .
