2SA1416 - PNP/NPN Epitaxial Planar Silicon Transistors

Product Overview

Sanyo Semicon Device

Part number	2SA1416
Manufacturer	Sanyo Semicon Device
File Size	42.80 KB
Description	PNP/NPN Epitaxial Planar Silicon Transistors
Datasheet	2SA1416 Datasheet

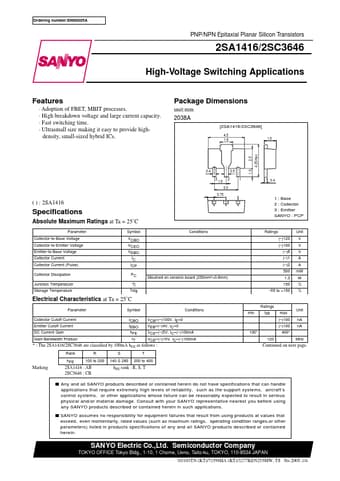

Additional preview pages of the 2SA1416 datasheet.

Adoption of FBET, MBIT processes.
High breakdown voltage and large current capacity.
Fast switching time.
Ultrasmall size making it easy to provide high- density, small-sized hybrid ICs. Package Dimensions unit:mm 2038A [2SA1416/2SC3646] 4.5 1.6 1.5 1.0 2.5 4.25max ( ) : 2SA1416 Specifications Absolute Maximum Ratings at Ta = 25˚C 0.4 0.5 3 1.5 2 3.0 1 0.75 0.4 1 : Base 2 : Collector 3 : Emitter SANYO : PCP Parameter Collector-to-Base Voltage Collector-to-Emitter.
