Part number:
2SC3087
Manufacturer:
Sanyo Semicon Device
File Size:
91.07 KB
Description:

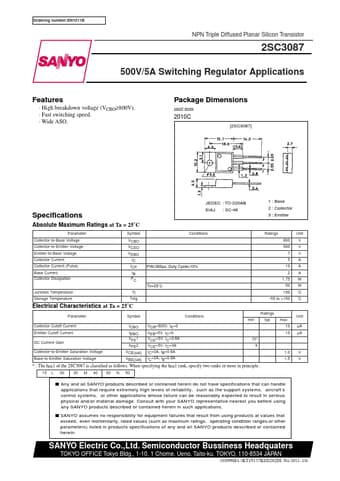

Npn triple diffused planar silicon transistor.
* High breakdown voltage (VCBO≥800V).
* Fast switching speed.
* Wide ASO. Package Dimensions unit:mm 2010C [2SC3087] Specifications JEDEC : TO-220AB EIAJ : SC-46 1 : Base 2 : Collector 3 : Emitter Absolute Maximum Ratings at Ta = 25˚C Parameter Symbol Conditions Ratings Collect
2SC3087
Sanyo Semicon Device
91.07 KB
Npn triple diffused planar silicon transistor.
