* High DC current gain.
* Large current capacity and Wide ASO.
* Contains Zener diode of 95±10V between collector and base.
* Uniformity in collector-to-base voltage due to adoption of accurate impurity diffusion process.
* High inductive load handling capability. Specifications
2SC4547
Sanyo Semicon Device
82.31 KB
Npn transistor.
Ordering number:EN3712

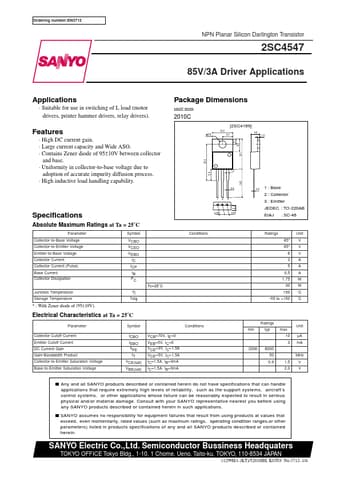

NPN Planar Silicon Darlington Transistor
2SC4547
85V/3A Driver Applications
Applications
* Suitable for use in switching .
