Part number:
2SC4543
Manufacturer:
Panasonic Semiconductor
File Size:
36.61 KB
Description:
Npn transistor.

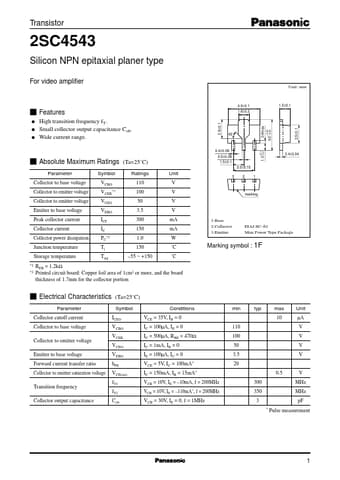

* 2.6±0.1 4.5±0.1 1.6±0.2 1.5±0.1 q q q 45° 1.0
* 0.2 +0.1 0.4±0.08 4.0
* 0.20 High transition frequency fT. Small collector output capacitance Cob. Wide current range. 0.4max. s Absolute Maximum Ratings Parameter Collector to base voltage Collector to emitter voltage Collector
2SC4543
Panasonic Semiconductor
36.61 KB
Npn transistor.
