2SC4542

SILICON POWER TRANSISTOR

2SC4542 General Description


*With TO-3P(H)IS package
*High speed
*High voltage APPLICATIONS
*Horizontal deflection output for high resolution display
*High speed switching regulator output applications PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION 2SC4542 Fig.1 simplified outline (TO-3P(H)IS) and s.

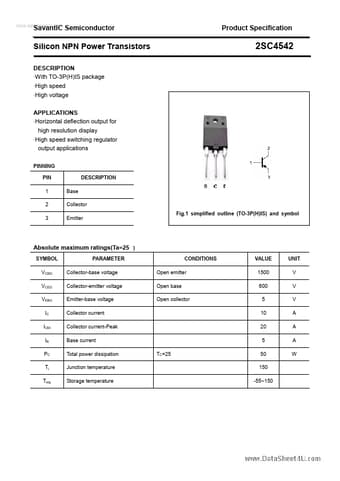

2SC4542 Datasheet (314.19 KB)

Preview of 2SC4542 PDF

Datasheet Details

Part number:

2SC4542

Manufacturer:

SavantIC

File Size:

314.19 KB

Description:

Silicon power transistor.
