2SC4511 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SC4511

Manufacturer:

SavantIC

File Size:

274.57kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

With TO-220F package

Complement to type 2SA1725 APPLICATIONS

Audio and general purpose PINNING PIN 1 2 3 B

2SC4511 Application

• Applications

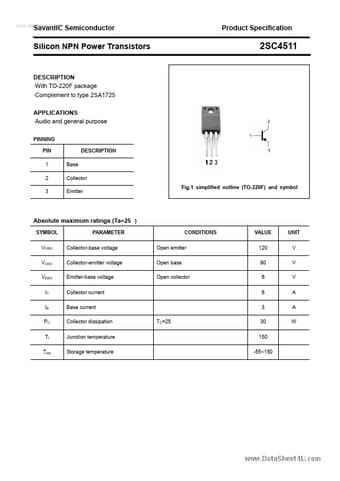

• Audio and general purpose PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220F) and symbol DESCRIPTION
