2SC4517 NPN TRANSISTOR

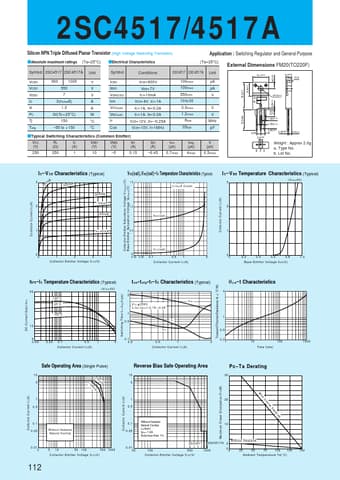

2SC4517/4517A Silicon NPN Triple Diffused Planar Transistor (High Voltage Switchihg Transistor) sAbsolute maximum ratings (Ta=25°C) Unit V V V A A W °C °C Application : Switching Regulator and General Purpose (Ta=25°C) sElectrical Characteristics Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) VBE(sat) fT COB Conditions VCB=800V VEB=7V IC=10mA VCE=4V, IC=1A IC=1A, IB=0.2A IC=1A, IB=0.2A VCE=12V, IE= 0.25A VCB=10V, f=1MHz External Dimensions FM20(TO220F) 4.0±0.2 10.1±0.2 4.2±0.2 2.8 c0.5 Symbo.
