2SC4501S Datasheet - Hitachi Semiconductor

2SC4501S Silicon NPN Transistor

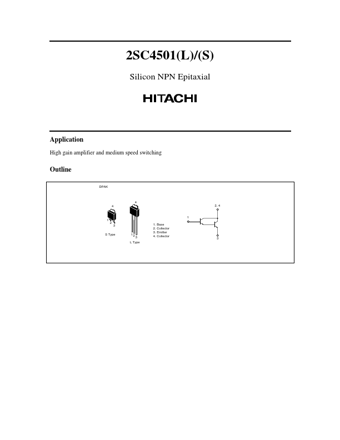

www.DataSheet4U.com 2SC4501(L)/(S) Silicon NPN Epitaxial Application High gain amplifier and medium speed switching Outline DPAK 4 4 1 2 3 12 1. Base 2. Collector 3. Emitter 4. Collector 2, 4 1 S Type 3 3 L Type 2SC4501(L)/(S) Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Note: 1. Value at TC = 25°C. Sy.

2SC4501S Datasheet (54.13 KB)
