2SC4509 - POWER TRANSISTOR

2SC4509 Description

www.DataSheet4U.com 2SC4509 TRIPLE DIFFUSED PLANER TYPE HIGH VOLTAGE,HIGH SPEED SWITCHING FUJI POWER TRANSISTOR Outline Drawings TO-3PF .

2SC4509 Applications

* Switching regulators DC-DC convertors Solid state relay General purpose power amplifiers JEDEC EIAJ (TO-3PF) - Maximum ratings and characteristics Absolute maximum ratings (Tc=25°C unless otherwise specified) Item Collector-Base voltage Collector-Emitter voltage Collector-Emitter voltage Emitter-Ba

📥 Download Datasheet

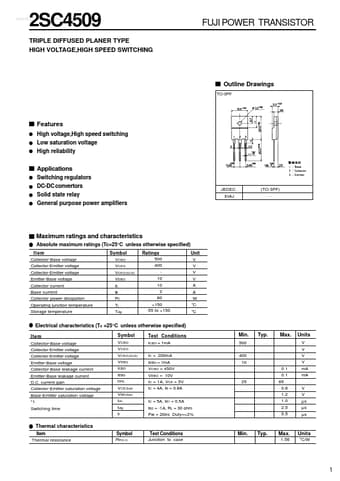

Preview of 2SC4509 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC4509
Manufacturer
Fuji Electric
File Size
235.63 KB
Datasheet
2SC4509_FujiElectric.pdf
Description
POWER TRANSISTOR
