2SC4500 Datasheet - Hitachi Semiconductor

2SC4500 - NPN TRANSISTOR

2SC4500(L)/(S) Silicon NPN Epitaxial Application Low frequency amplifier Outline DPAK 4 4 1 2 3 12 1.

Base 2.

Collector 3.

Emitter 4.

Collector 2, 4 1 S Type 3 3 L Type 2SC4500(L)/(S) Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Symbol VCBO VCEO VEBO IC I C (peak) PC PC Junction temperature Storage temperature Note: 1.

Value at TC = 25°C

2SC4500_HitachiSemiconductor.pdf

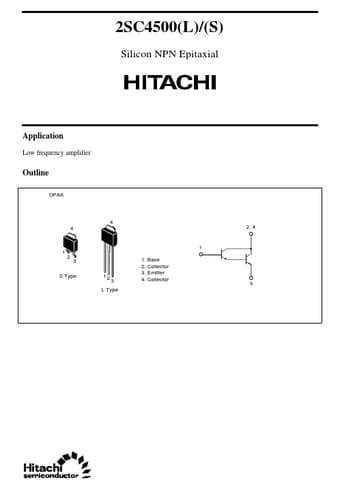

Preview of 2SC4500 PDF
2SC4500 Datasheet Preview Page 2 2SC4500 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC4500

Manufacturer:

Hitachi Semiconductor

File Size:

31.67 KB

Description:

Npn transistor.
