2SC4508 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SC4508

Manufacturer:

SavantIC

File Size:

230.61kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

  • With TO-220F package
  • High breakdown voltage
  • High speed switching performance APPLICATIONS
  • For swi

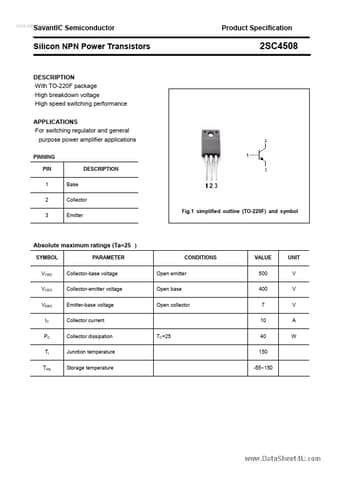

  • Datasheet Preview: 2SC4508 📥 Download PDF (230.61kb)
    Page 2 of 2SC4508 Page 3 of 2SC4508

    2SC4508 Application

    • Applications
    • For switching regulator and general purpose power amplifier applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simpli
