2SC4511 Datasheet - Sanken electric

2SC4511 NPN TRANSISTOR

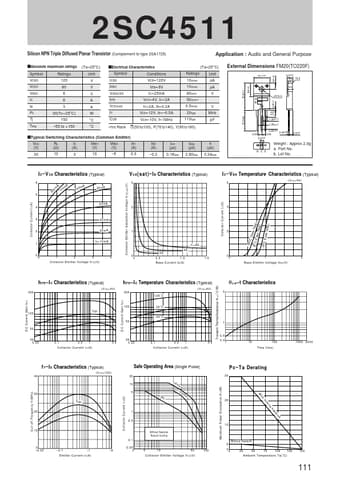

2SC4511 Silicon NPN Triple Diffused Planar Transistor (Complement to type 2SA1725) Application : Audio and General Purpose sAbsolute maximum ratings Symbol Ratings VCBO 120 VCEO 80 VEBO 6 IC 6 IB 3 PC 30(Tc=25°C) Tj 150 Tstg 55 to +150 (Ta=25°C) Unit V V V A A W °C °C sElectrical Characteristics (Ta=25°C) Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) fT COB Conditions VCB=120V VEB=6V IC=25mA VCE=4V, IC=2A IC=2A, IB=0.2A VCE=12V, IE= 0.5A VCB=10V, f=1MHz Ratin.
