2SC5264LS NPN TRANSISTOR

2SC5264LS Description

Ordering number:ENN5287A NPN Triple Diffused Planar Silicon Transistor 2SC5264LS Inverter Lighting Applications .

2SC5264LS Features

* High breakdown voltage (VCBO=1000V).
* High reliability (Adoption of HVP process).
* Adoption of MBIT process. Package Dimensions unit:mm 2079D [2SC5264] 10.0 3.2 3.5 7.2 4.5 2.8 16.1 16.0 3.6 0.9 1.2 14.0 1.2 0.75 1 2 3 2.4 0.7 1 : Base 2 : Collector 3 : Emitter SANYO : TO

📥 Download Datasheet

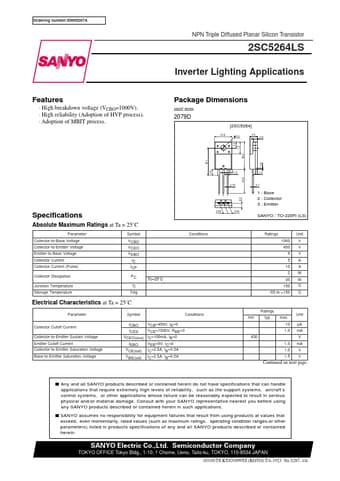

Preview of 2SC5264LS PDF
datasheet Preview Page 2 datasheet Preview Page 3
