2SC5200A Silicon NPN Transistor

2SC5200A Description

NPN Silicon NPN Triple Diffused Transistor R 2SC5200A * APPLICATIONS * Power Amplifier Applications *：VCEO=230V (min) * 2SA1943.
of Changes 2014-10-24 201410A 2016-2-5 201410A 201602B ：201602B 5/5.

2SC5200A Features

* High collector voltage：VCEO=230V (min)
* Complementary to 2SA1943A
* Recommended for 100-W high-fidelity audio frequency amplifier output
* RoHS product TO-247 1 BASE 2 （）COLLECTOR (HEAT SINK) 3 EMITTER ORDER MESSAGE Order codes Marking 2SC5200A-O-AL-N-D 2SC5200A-O-AL-N-B 2

2SC5200A Applications

* Power Amplifier Applications
* ：VCEO=230V (min)
* 2SA1943A
* 100W

📥 Download Datasheet

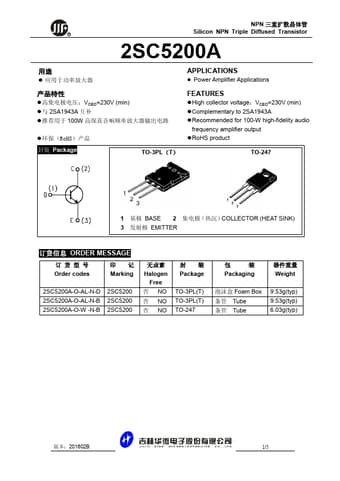

Preview of 2SC5200A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC5200A
Manufacturer
JILIN SINO
File Size
339.82 KB
Datasheet
2SC5200A-JILINSINO.pdf
Description
Silicon NPN Transistor
