2SC2240 Datasheet, Transistor, JILIN SINO

2SC2240 Features

  • Transistor
  • High collector voltage:VCEO=120V (min)
  • Complementary 2SA970
  • High DC current gain
  • RoHS Devices Package TO-92 1. EMITTER 2. () COLLECTOR (HEAT SIN

PDF File Details

Part number:

2SC2240

Manufacturer:

JILIN SINO

File Size:

492.42kb

Download:

📄 Datasheet

Description:

Npn power bipolar transistor.

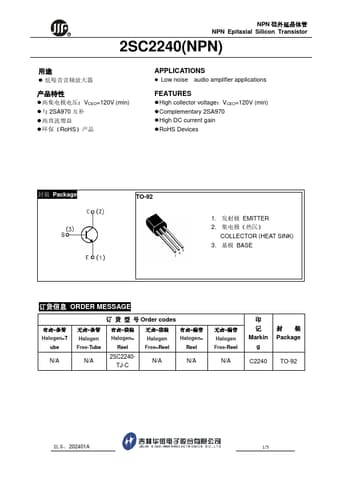

Datasheet Preview: 2SC2240 📥 Download PDF (492.42kb)
Page 2 of 2SC2240 Page 3 of 2SC2240

2SC2240 Application

  • Applications
  • Low noise audio amplifier applications FEATURES
  • High collector voltage:VCEO=120V (min)
  • Complementary 2SA970

TAGS

2SC2240
NPN
Power
Bipolar
Transistor
JILIN SINO
