2SC5964 Datasheet, Transistors, Sanyo Semicon Device

2SC5964 Features

  • Transistors
  • Adoption of MBIT process. High current capacitance. Low collector-to-emitter saturation voltage. High-speed switching. Specifications ( ) : 2SA

PDF File Details

Part number:

2SC5964

Manufacturer:

Sanyo Semicon Device

File Size:

225.91kb

Download:

📄 Datasheet

Description:

Npn epitaxial planar silicon transistors.

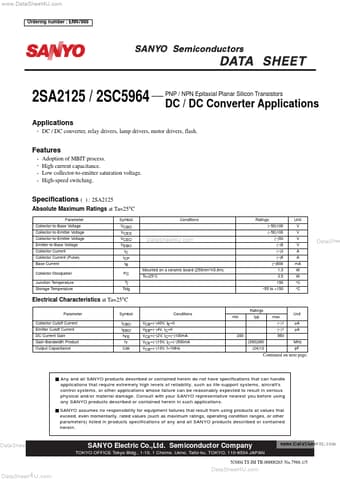

Datasheet Preview: 2SC5964 📥 Download PDF (225.91kb)
Page 2 of 2SC5964 Page 3 of 2SC5964

2SC5964 Application

  • Applications
  • PNP / NPN Epitaxial Planar Silicon Transistors DC / DC Converter Applications DC / DC converter, relay drivers, lamp drive

TAGS

2SC5964
NPN
Epitaxial
Planar
Silicon
Transistors
Sanyo Semicon Device
