2SC5902 - NPN Transistor

Datasheet Summary

Description

High Breakdown Voltage Built-in damper diode type High Switching Speed Wide Area of Safe Operation 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for high voltage color display horizon

📥 Download Datasheet

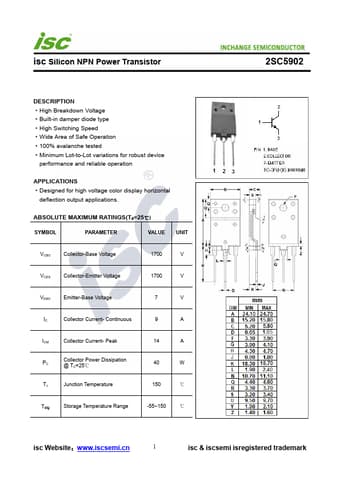

Datasheet preview – 2SC5902

Datasheet Details

Part number 2SC5902
Manufacturer INCHANGE
File Size 174.33 KB
Description NPN Transistor
Datasheet download datasheet 2SC5902 Datasheet
