2SD1725 - PNP/NPN Epitaxial Planar Silicon Transistors

2SD1725 Description

Ordering number:ENN2048B PNP/NPN Epitaxial Planar Silicon Transistors 2SB1168/2SD1725 Large Current Switching Applications .

2SD1725 Features

* Relay drivers, high-speed inverters, converters. Features
* Low collector-to-emitter saturation voltage.
* High fT.
* Excellent linearity of hFE.
* Short switching time. Package Dimensions unit:mm 2043B [2SB1168/2SD1725] 8.0 4.0 2.0 2.7 1.5 9.0 11.0 1.6 0.8 3.0 15.5

📥 Download Datasheet

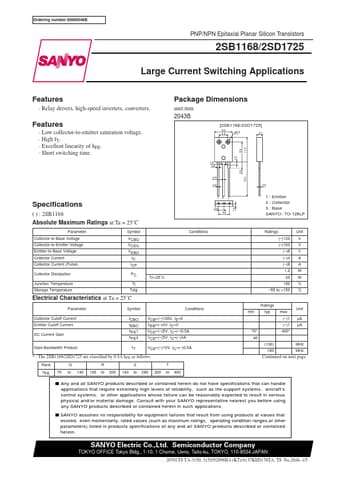

Preview of 2SD1725 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD1725
Manufacturer
Sanyo Semicon Device
File Size
50.59 KB
Datasheet
2SD1725_SanyoSemiconDevice.pdf
Description
PNP/NPN Epitaxial Planar Silicon Transistors
