2SD1720 - Power Transistor

Product Overview

📥 Download Datasheet

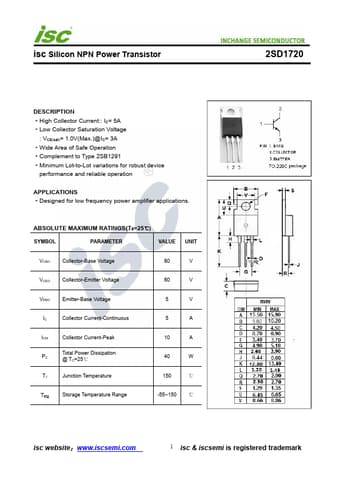

Datasheet preview – 2SD1720

Datasheet Details

Part number 2SD1720
Manufacturer Inchange Semiconductor
File Size 213.90 KB
Description Power Transistor
Datasheet download datasheet 2SD1720 Datasheet
Additional preview pages of the 2SD1720 datasheet.

Product details

Description

High Collector Current:: IC= 5A Low Collector Saturation Voltage : VCE(sat)= 1.0V(Max.)@IC= 3A Wide Area of Safe Operation Complement to Type 2SB1291 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for low frequency power amplifier applications.
