2SJ340 - P-Channel MOSFET

Sanyo Semicon Device

📥 Download Datasheet

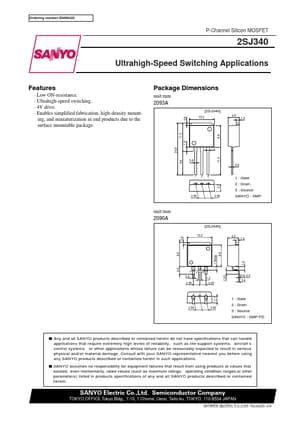

2SJ340 Datasheet Preview — Preview of 2SJ340 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SJ340
Manufacturer	Sanyo Semicon Device
File Size	42.01 KB
Description	P-Channel MOSFET
Datasheet	2SJ340_SanyoSemiconDevice.pdf

2SJ340 Product details

Features

Low ON-resistance.
Ultrahigh-speed switching.
4V drive.
Enables simplified fabrication, high-density mounting, and miniaturization in end products due to the surface mountable package. Package Dimensions unit:mm 2093A [2SJ340] 0.9 10.2 4.5 1.3 11.5 1.6 20.9 1.2 11.0 9.4 0.8 8.8 0.4 1 2 3 2.7 2.55 2.55 1 : Gate 2 : Drain 3 : Source SANYO : SMP unit:mm 2090A [2SJ340] 0.8 10.2 4.5 1.3 1.5max 8.8 9.9 3.0 2.55 1.2 2.55 2.7 1.35 1 0.8 2 3 0 to 0.3 0.
