FC809

30V/ 70mA Rectifier

FC809 Features

* Low forward voltage (VF max=0.55V) .

* Fast reverse recovery time (trr max=10ns) .

* Composite type with 2 diodes contained in the CP package currently in use, saving the mounting space greatly.

* The FC809 is formed with two chips, each being equivalent to the SB007-03CP, placed i

FC809 Datasheet (50.11 KB)

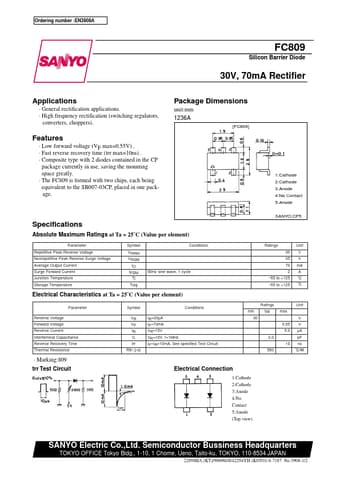

Preview of FC809 PDF

Datasheet Details

Part number:

FC809

Manufacturer:

Sanyo Semicon Device

File Size:

50.11 KB

Description:

30v/ 70ma rectifier.
Ordering number :EN3908A FC809 Silicon Barrier Diode 30V, 70mA Rectifier Applications
* General rectification applications.
* High frequency.
