FSS101 - P-Channel Silicon MOSFET

Datasheet Summary

Features

Low ON resistance.
Ultrahigh-speed switching.
2.5V drive. P-Channel Silicon MOSFET FSS101 Load S/W.

Sanyo Semicon Device

📥 Download Datasheet

Datasheet Details

Part number	FSS101
Manufacturer	Sanyo Semicon Device
File Size	114.10 KB
Description	P-Channel Silicon MOSFET
Datasheet	FSS101 Datasheet

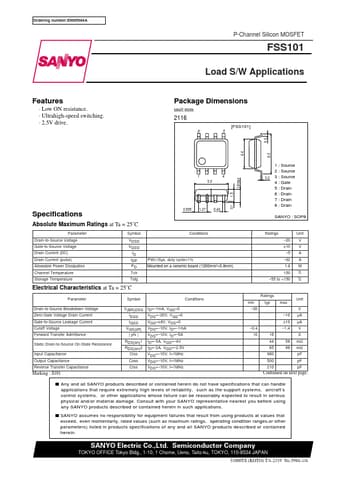

Additional preview pages of the FSS101 datasheet.
