LA42201

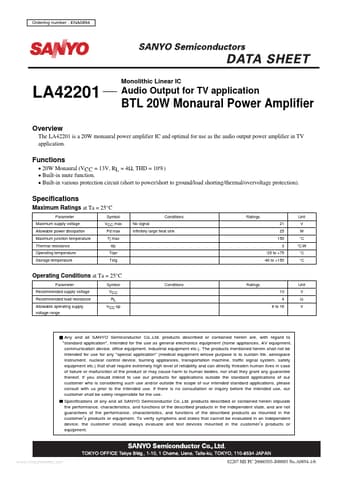

The LA42201 is BTL 20W Monaural Power Amplifier designed by Sanyo Semicon Device.

Product Overview

Sanyo Semicon Device

Datasheet Details

Part number	LA42201
Manufacturer	Sanyo Semicon Device
File Size	87.26 KB
Description	BTL 20W Monaural Power Amplifier
Datasheet	LA42201_SanyoSemiconDevice.pdf
Additional preview pages of the LA42201 datasheet.

Product details

Description

of external parts CIN CRF CMute CVCC : Input coupling capacitor, for which 0.47μF is recommended.Since the input pin potential is about 1/2 VCC, the ceramic capacitor with small leak current is recommended.: Ripple filter capacitor, for which 100μF is recommended.Note that the capacitance below 100μF will cause decrease in the ripple removal ratio.: Capacitor for mute.: Power capacitor.No.A0894-3/6 LA42201 Cautions Oscillation of the capacitor between the output pin and GND may cause osc

Features

so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits and error prevention circuits for safe design, redundant design, and structural design. In the event that any or all SANYO Semiconductor Co. ,Ltd. products described or contained herein are controlled under any of applicable local export control laws and regulations, such products may requir.
