LA42205 - 5W X 2ch Power Amplifier

Datasheet Summary

Features

60.
70 0 10 2 3 Resistance for signal generation, Rg.
Ω 5 7 100 2 3 5 7 1k 2 3 5 7 10k 2 3 5 7100k 10 Frequency, f.
Hz No. A0714-6/7 LA42205 0 Ripple rejection ratio, SVRR.
dB Ripple rejection.

Sanyo Semicon Device

📥 Download Datasheet

Datasheet Details

Part number	LA42205
Manufacturer	Sanyo Semicon Device
File Size	97.69 KB
Description	5W X 2ch Power Amplifier
Datasheet	LA42205 Datasheet
Additional preview pages of the LA42205 datasheet.

📁 Similar Datasheet

LA4220 - 3.5W AF POWER AMP (SANYO)
LA42207 - 7W x 2ch Power Amplifier (SANYO)
LA42210 - BTL 10W X 2ch Power Amplifier (Sanyo)
LA4224 - 1W Monaural Power AMplifier (Sanyo Electric)
LA4225 - LA4225 (ETC)
LA4225 - 5W Monaural Power Amplifier (Sanyo Electric)
LA4227 - Audio Output (Sanyo)
LA4200 - (LA4200 / LA4201) 1.5 - 2.5 W AF (Sanyo Semiconductor)
LA4201 - (LA4200 / LA4201) 1.5 - 2.5 W AF (Sanyo Semiconductor)
LA42052 - 5W x 2ch Power Amplifier (Sanyo)

Other Datasheets by Sanyo Semicon Device

LA42201 - BTL 20W Monaural Power Amplifier
LA42031 - 5W Monaural Power Amplifier
LA42032 - 5W X 2ch Power Amplifier
LA42051 - 5W X 1ch Power Ampilfier
LA42101 - Monolithic Linear IC Audio Output
LA42102 - 10W x 2ch Power Amplifier
LA42105 - Monolithic Linear IC Audio Output
LA4230 - (LA4230 / LA4250) 6W - 8W TYP AMP

Full PDF Text Transcription

Click to expand full text

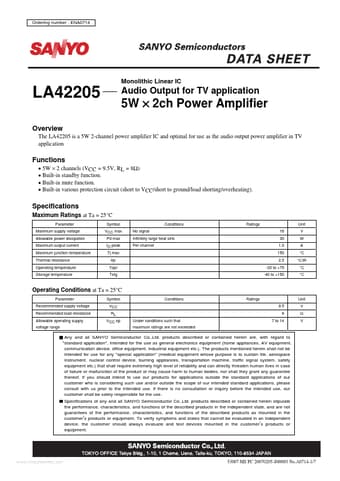

Ordering number : ENA0714 Monolithic Linear IC LA42205 Overview Audio Output for TV application 5W × 2ch Power Amplifier The LA42205 is a 5W 2-channel power amplifier IC and optimal for use as the audio output power amplifier in TV application Functions • 5W × 2 channels (VCC = 9.5V, RL = 8Ω) • Built-in standby function. • Built-in mute function. • Built-in various protection circuit (short to VCC/short to ground/load shorting/overheating). Specifications Maximum Ratings at Ta = 25°C Parameter Maximum supply voltage Allowable power dissipation Maximum output current Maximum junction temperature Thermal resistance Operating temperature Storage temperature Symbol VCC max Pd max IO peak Tj max θjc Topr Tstg No signal Infinitely large heat sink Per channel Conditions Ratings 16 30 1.
