LA42210 Datasheet - Sanyo

LA42210 BTL 10W X 2ch Power Amplifier

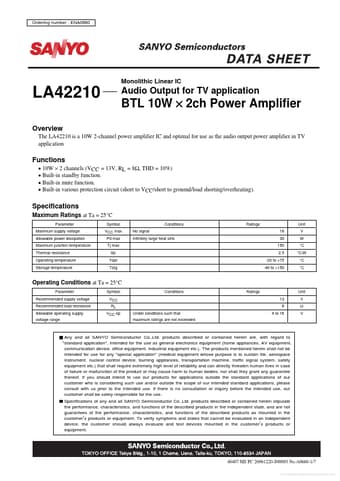

Ordering number : ENA0660 Monolithic Linear IC LA42210 Overview Audio Output for TV application BTL 10W × 2ch Power Amplifier The LA42210 is a 10W 2-channel power amplifier IC and optimal for use as the audio output power amplifier in TV application Functions 10W × 2 channels (VCC = 13V, RL = 8Ω, THD = 10%) Built-in standby function. Built-in mute function. Built-in various protection circuit (short to VCC/short to groumd/load shorting/overheating). .

LA42210 Features

* r>

* 10 0.4

* 20 0.3

* 30 ch2 0.2 ch1

* 40

* 50 0.1 ch1→ch2

* 60

* 70 ch2→ch1 2 3 5 7 100 2 3 5 7 1k 2 3 5 7 10k 2 3 5 7 100k 0 10 2 3 Resistance for sign

LA42210 Datasheet (101.93 KB)

LA42210 Datasheet Preview — Preview of LA42210 PDF

Datasheet Details

Part number:

LA42210

Manufacturer:

Sanyo

File Size:

101.93 KB

Description:

Btl 10w x 2ch power amplifier.
