LA5753MP

Separately-Excited Step-Down Switching Regulator

LA5753MP Datasheet (98.22 KB)

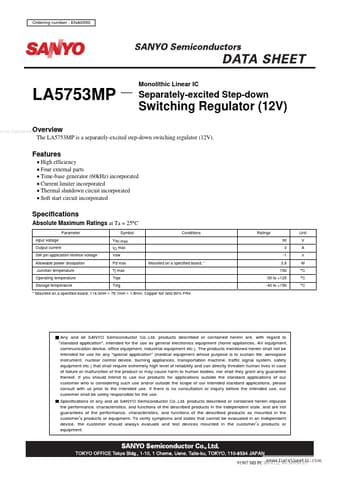

Preview of LA5753MP PDF Datasheet

Datasheet Details

Part number:

LA5753MP

Manufacturer:

Sanyo Semicon Device

File Size:

98.22 KB

Description:

Separately-excited step-down switching regulator

LA5753MP Features

* High efficiency

* Four external parts

* Time-base generator (60kHz) incorporated

* Current limiter incorporated

* Thermal shutdown circuit incorporated

* Soft start circuit incorporated Specifications Absolute Maximum Ratings at Ta = 25°C Parameter

LA5753MP General Description

of Functional Settings 1.Start delay function The SS pin has the internally-connected 22µA (typ) constant-current supply. When the voltage of SS pin exceeds the threshold voltage, the regulator starts operation. As the threshold is 0.62V(typ), the start delay time can be calculated as follows: ex. F.
