LA5724MC Separately-Excited Step-Down Switching Regulator

Overcurrent protection function The overcurrent protection function detects, on a pulse-by-pulse basis, the output transistor current and turns off that output transistor current if it exceeds 0.7A in a pulse-by-pulse manner. Limit current Inductor current SWOUT voltage Short circuit protection fun.

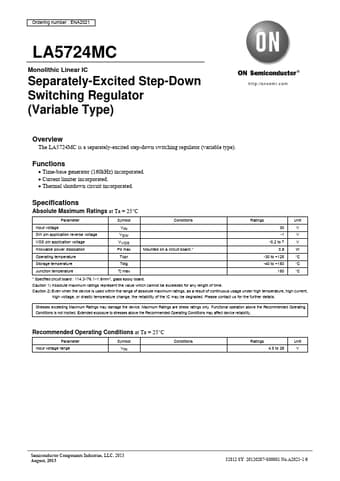

Ordering number : ENA2021 LA5724MC Monolithic Linear IC Separately-Excited Step-Down Switching Regulator (Variable Type) http://onsemi.com Overview The LA5724MC is a separately-excited step-down switching regulator (variable type). Functions Time-base generator (160kHz) incorporated. Current limiter incorporated. Thermal shutdown circuit incorporated. Specifications Absolute Maximum Ratings at Ta = 25°C Parameter Symbol Conditions Ratings Unit Input voltag.

LA5724MC Features

* horized f

LA5724MC-ONSemiconductor.pdf

LA5724MC Datasheet Preview — Preview of LA5724MC PDF

Datasheet Details

Part number:

LA5724MC

Manufacturer:

ON Semiconductor ↗

File Size:

148.53 KB

Description:

Separately-excited step-down switching regulator.
