LA5724M Monolithic Linear IC Separately-Excited Step-Down Switching Regulator

1. Overcurrent protection function The overcurrent protection function detects, on a cycle-by-cycle basis, the output transistor current and turns off that output transistor current if it exceeds 0.7A in a cycle-by-cycle manner. Limit current Inductor current www.DataSheet4U.com SWOUT voltage 2. .
Ordering number : ENA0586 Monolithic Linear IC LA5724M Overview www.DataSheet4U.com Separately-Excited Step-Down Switching Regulator (Variable Type) The LA5724M is a separately-excited step-down switching regulator (variable type). Functions Time-base generator (160kHz) incorporated. Current limiter incorporated. Thermal shutdown circuit incorporated. Specifications Absolute Maximum Ratings at Ta = 25°C Parameter Input voltage Maximum output current SW pin ap.

LA5724M_SanyoSemiconDevice.pdf

Preview of LA5724M PDF

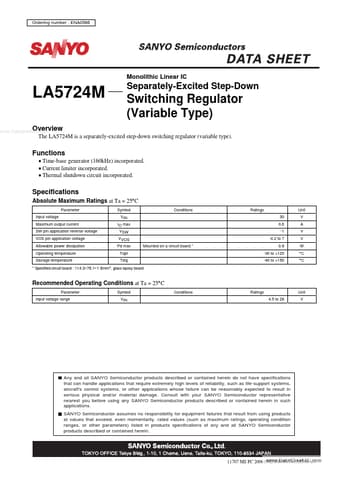

LA5724M Datasheet Preview Page 2 LA5724M Datasheet Preview Page 3
