LA5735M Monolithic Linear IC Separately-Excited Step-Down Switching Regulator

1. Overcurrent protection function The overcurrent protection function detects, on a cycle-by-cycle basis, the output transistor current and turns off that output transistor current if it exceeds 0.7A in a cycle-by-cycle manner. Limit current Inductor current www.DataSheet4U.com SWOUT voltage 2. .
Ordering number : ENA0588 Monolithic Linear IC LA5735M Overview www.DataSheet4U.com Separately-Excited Step-Down Switching Regulator (Variable Type) The LA5735M is a separately-excited step-down switching regulator (variable type). Functions Time-base generator (300kHz) incorporated. Current limiter incorporated. Thermal shutdown circuit incorporated. Specifications Absolute Maximum Ratings at Ta = 25°C Parameter Input voltage Maximum output current SW pin ap.

LA5735M Features

* that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits and error prevention c

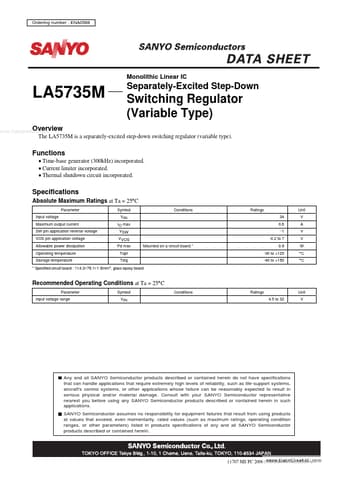

LA5735M Datasheet (116.04 KB)

Preview of LA5735M PDF
LA5735M Datasheet Preview Page 2 LA5735M Datasheet Preview Page 3

Datasheet Details

Part number:

LA5735M

Manufacturer:

Sanyo Semicon Device

File Size:

116.04 KB

Description:

Monolithic linear ic separately-excited step-down switching regulator.
