LA6242H Datasheet - Sanyo Semicon Device

Four-Channel Bridge Driver for CD Player

LA6242H Features

* Four bridge-connected (BTL) power amplifier circuits IO max: 1 A Built-in level shifter circuits Muting circuit (on/off control for all outputs) High output voltage (dynamic range): 6.5 V (typical, channel 1 only) Built-

LA6242H General Description

Note: x The center frame (FR) is used as the power system ground (P-GND). Along with the signal system ground (S-GND), this level must be the lowest potential in the system. x The VCC_S (signal system power supply), VCCP1, and VCCP2 (output stage power supplies) must be shorted together externally..

LA6242H Datasheet (584.00 KB)

LA6242H Datasheet Preview — Preview of LA6242H PDF

Datasheet Details

Part number:

LA6242H

Manufacturer:

Sanyo Semicon Device

File Size:

584.00 KB

Description:

Four-channel bridge driver for cd player.

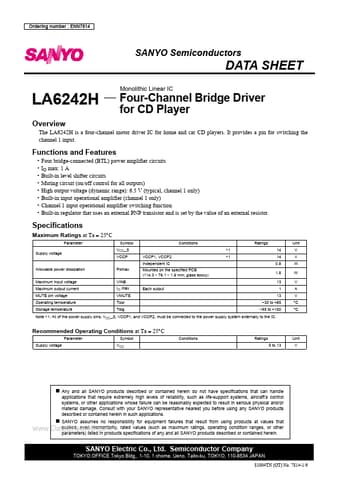

www.DataSheet4U.com Ordering number : ENN7814 SANYO Semiconductors DATA SHEET LA6242H Overview Four-Channel Bridge Driver Monolithic Linear IC.
