* Text structure: 12 lines × 24 characters (Up to 288 characters)
* Character format: 16 × 16 dots Character display clock frequency: about 9 MHz
* Character sizes: Four sizes each in the horizontal and vertical directions with the size set in line units.
* Number of

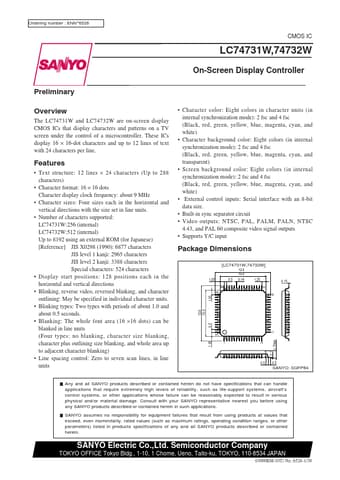

LC74731W Datasheet (157.30 KB)
LC74731W
Sanyo Semicon Device
157.30 KB
On-screen display controller.
Ordering number : ENN
*6526
CMOS IC
LC74731W,74732W
On-Screen Display Controller
Preliminary Overview
The LC74731W and LC74732W are on-screen dis.
