LC74736PT - CMOS IC On-Screen Display Controller

LC74736PT Description

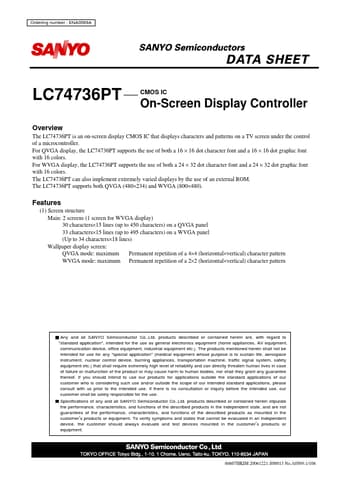

www.DataSheet.co.kr Ordering number : ENA0569A LC74736PT Overview CMOS IC On-Screen Display Controller The LC74736PT is an on-screen display CMOS.
Connect a ground to this pin.

LC74736PT Features

* (1) Screen structure Main: 2 screens (1 screen for WVGA display) 30 characters×15 lines (up to 450 characters) on a QVGA panel 33 characters×15 lines (up to 495 characters) on a WVGA panel (Up to 34 characters×18 lines) Wallpaper display screen: QVGA mode: maximum Permanent repetition of a 4×4 (hori

LC74736PT Applications

* outside the standard applications of our customer who is considering such use and/or outside the scope of our intended standard applications, please consult with us prior to the intended use. If there is no consultation or inquiry before the intended use, our customer shall be solely responsible for

📥 Download Datasheet

Preview of LC74736PT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LC74736PT
Manufacturer
Sanyo Semicon Device
File Size
592.25 KB
Datasheet
LC74736PT_SanyoSemiconDevice.pdf
Description
CMOS IC On-Screen Display Controller
