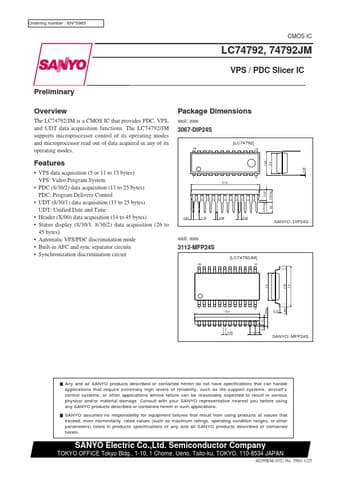

LC74792 - VPS / PDC Slicer

8 SYNCJDG Hout VSS2 CPOUT VCOIN VCOR DAV VDD2 SYNIN SEPC SEPOUT SEPIN 9 10 11 12 13 14 15 16 17 18 19 20 Vout Vertical synchronizing signal output 21 CTRL2 SEPIN input control Clock phase adjustment Reset input Power supply (+5 V) 22 23 24 CDLR RST VDD1 No. 5965-3/25 LC74792, 74792JM S.

LC74792 Features

* VPS data acquisition (5 or 11 to 15 bytes) VPS: Video Program System

* PDC (8/30/2) data acquisition (13 to 25 bytes) PDC: Program Delivery Control

* UDT (8/30/1) data acquisition (13 to 25 bytes) UDT: Unified Date and Time

* Header (X/00) data acquisition (14 to 45
