LC74793JM

VPS / PDC Slicer

LC74793JM Features

* VPS data acquisition (5 or 11 to 15 bytes) VPS: Video Program System

* PDC (8/30/2) data acquisition (13 to 25 bytes) PDC: Program Delivery Control

* UDT (8/30/1) data acquisition (13 to 25 bytes) UDT: Unified Date and Time

* Header (X/00) data acquisition (14 to 45

LC74793JM General Description

7 SCL 8 SYNCJDG Hout VSS2 CPOUT VCOIN VCOR DAV VDD2 SYNin SEPC SEPOUT SEPIN 9 10 11 12 13 14 15 16 17 18 19 20 Vout Vertical synchronizing signal output 21 CTRL2 SEPin input control 22 23 24 CDLR RST VDD1 Clock phase adjustment Reset input Power supply (+5 V) No. 5966-3/24 LC74793, 7.

LC74793JM Datasheet (154.14 KB)

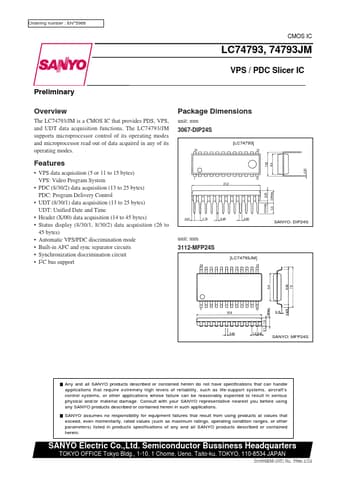

Preview of LC74793JM PDF

Datasheet Details

Part number:

LC74793JM

Manufacturer:

Sanyo Semicon Device

File Size:

154.14 KB

Description:

Vps / pdc slicer.
Ordering number : EN
*5966 CMOS IC LC74793, 74793JM VPS / PDC Slicer IC Preliminary Overview The LC74793/JM is a CMOS IC that provides PDS, VPS, .
