LC75392 Datasheet - Sanyo Semicon Device

LC75392, Single-Chip Electronic Volume Control

Ordering number : EN5681 CMOS LSI LC75392, 75392M Single-Chip Electronic Volume Control System Overview The LC75392 (DIP-30SD) and the LC75392M (MF.

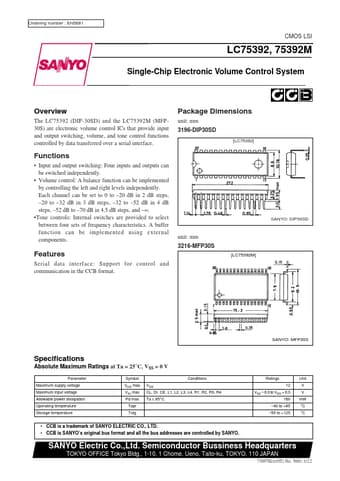

datasheet Preview Page 1 from Datasheet4u.com

LC75392_SanyoSemiconDevice.pdf

LC75392 Datasheet Preview — Preview of LC75392 PDF

Datasheet Details

Part number:

LC75392

Manufacturer:

Sanyo Semicon Device

File Size:

271.21 KB

Description:

Single-Chip Electronic Volume Control

Features

* Serial data interface: Support for control and communication in the CCB format. SANYO: MFP30S Specifications Absolute Maximum Ratings at Ta = 25°C, VSS = 0 V Parameter Maximum supply voltage Maximum input voltage Allowable power dissipation Operating temperature Storage temperature Symbol VDD max

Applications

* must apply data in the stipulated format to the CE, CL, and DI pins. This data consists of 32 bits, of which 8 bits are the address and 24 bits are the control data. 1 µs ≤ tDEST Don’t care Volume control data Don’t Don’t care care Tone pattern control data Don’t care Buffer mode Test mode Don
