LC75396NE Single-Chip Electronic Volume Control

Sanyo Semicon Device

Description

Ordering number : EN5914 CMOS IC LC75396NE Single-Chip Electronic Volume Control System Overview The LC75396NE is an electronic volume control syst.

📥 Download Datasheet

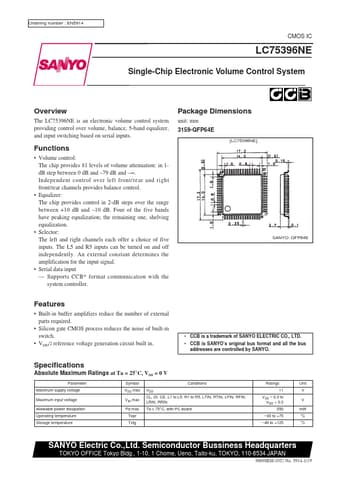

LC75396NE Datasheet Preview — Preview of LC75396NE PDF

Datasheet Specifications

Part number: LC75396NE
Manufacturer: Sanyo Semicon Device
File Size: 471.67 KB
Datasheet: LC75396NE_SanyoSemiconDevice.pdf
Description: Single-Chip Electronic Volume Control

Features

* Built-in buffer amplifiers reduce the number of external parts required.
* Silicon gate CMOS process reduces the noise of built-in switch.
* VDD/2 reference voltage generation circuit built in.
* CCB is a trademark of SANYO ELECTRIC CO. , LTD.
* CCB is SANYO

Applications

* must initialize this chip by sending the initial data (1) and (2) described below. Initial data (1) Address 01000001 Data: (Set the volume to
* ∞set both D34 and D35 to 1, and set all other data to 0) (2) Address 01000001 Data: (Set the volume to
* ∞, set both D34 and D35 to 0, and se
