Datasheet Specifications
- Part number
- LC75392M
- Manufacturer
- Sanyo Semicon Device
- File Size
- 271.21 KB
- Datasheet
- LC75392M_SanyoSemiconDevice.pdf
- Description
- Single-Chip Electronic Volume Control
Description

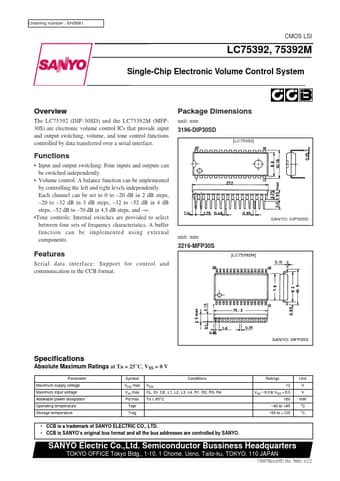

Ordering number : EN5681 CMOS LSI LC75392, 75392M Single-Chip Electronic Volume Control System Overview The LC75392 (DIP-30SD) and the LC75392M (MF.
Features
* Serial data interface: Support for control and communication in the CCB format. SANYO: MFP30S Specifications Absolute Maximum Ratings at Ta = 25°C, VSS = 0 V Parameter Maximum supply voltage Maximum input voltage Allowable power dissipation Operating temperature Storage temperature Symbol VDD maxApplications
* must apply data in the stipulated format to the CE, CL, and DI pins. This data consists of 32 bits, of which 8 bits are the address and 24 bits are the control data. 1 µs ≤ tDEST Don’t care Volume control data Don’t Don’t care care Tone pattern control data Don’t care Buffer mode Test mode DonLC75392M Distributors
