LC75410E - Electronic Volume Controller

Product Overview

Sanyo Semicon Device

Part number	LC75410E
Manufacturer	Sanyo Semicon Device
File Size	234.18 KB
Description	Electronic Volume Controller
Datasheet	LC75410E Datasheet

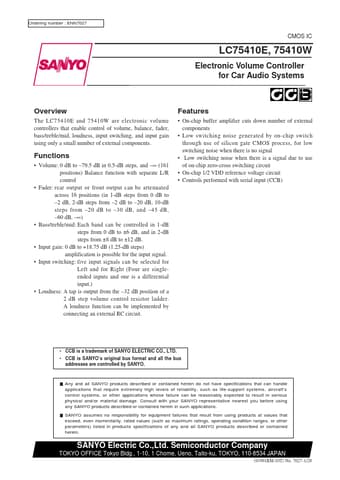

Additional preview pages of the LC75410E datasheet.

On-chip buffer amplifier cuts down number of external components.
Low switching noise generated by on-chip switch through use of silicon gate CMOS process, for low switching noise when there is no signal.
Low switching noise when there is a signal due to use of on-chip zero-cross switching circuit.
On-chip 1/2 VDD reference voltage circuit.
Controls performed with serial input (CCB) Functions.
Volume: 0 dB to.
79.5 dB in 0.5-dB step.
