LC75411ES - (LC75411ES/WS) electronic volume control system

Product Overview

Sanyo Semiconductor

📥 Download Datasheet

LC75411ES (LC75411ES/WS) electronic volume control system by Sanyo Semiconductor - Datasheet Preview — Datasheet preview – LC75411ES

Datasheet Details

Part number	LC75411ES
Manufacturer	Sanyo Semiconductor
File Size	746.97 KB
Description	(LC75411ES/WS) electronic volume control system
Datasheet	LC75411ES Datasheet

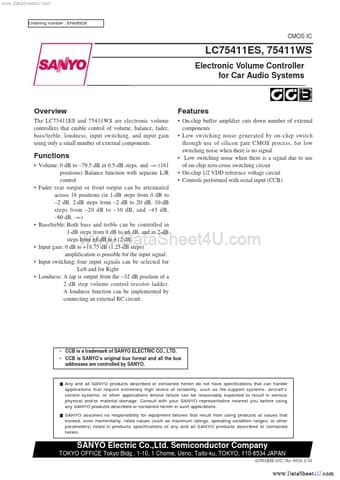

Additional preview pages of the LC75411ES datasheet.

Product details

Features

On-chip buffer amplifier cuts down number of external components.
Low switching noise generated by on-chip switch through use of silicon gate CMOS process, for low switching noise when there is no signal.
Low switching noise when there is a signal due to use of on-chip zero-cross switching circuit.
On-chip 1/2 VDD reference voltage circuit.
Controls performed with serial input (CCB) Functions.
Volume: 0 dB to.
79.5 dB in 0.5-dB step.
