LC82210L Datasheet - Sanyo Semicon Device

LC82210L Motion JPEG Codec

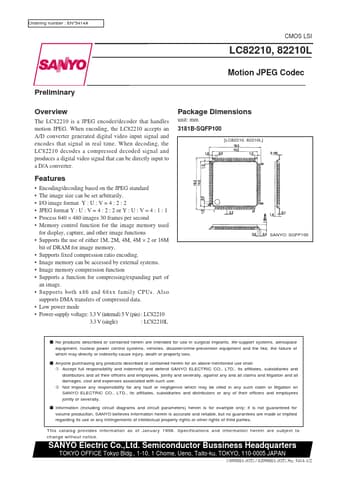

Ordering number : EN 5414A CMOS LSI LC82210, 82210L Motion JPEG Codec Preliminary Overview The LC82210 is a JPEG encoder/decoder that handles motion JPEG. When encoding, the LC82210 accepts an A/D converter generated digital video input signal and encodes that signal in real time. When decoding, the LC82210 decodes a compressed decoded signal and produces a digital video signal that can be directly input to a D/A converter. Package Dimensions unit: mm 3181B-SQFP100 [LC82210, 82210L] Feat.

LC82210L Features

* Encoding/decoding based on the JPEG standard The image size can be set arbitrarily. I/O image format Y : U : V = 4 : 2 : 2 JPEG format Y : U : V = 4 : 2 : 2 or
